On/Off Timer Control Panel with 1, 2 or 3-Pole Contactor -120V AC

Series: ATCP-C-120V

Features

• Compact, Rugged Industrial Design
• Analog?On/Off Cycling Timer
• Set “On” time (T1) Anywhere between 1 Sec and 100 Days
• Set “Off” time (T2) Anywhere between 1 Sec and 100 Days
• External ﾡﾰAuto ﾨC Off ﾨC Onﾡﾱ Power Control Switch
• 120V AC, 50/60 Hz Operation
• Green ﾡﾰPower Onﾡﾱ Pilot Light
• Available with 1, 2 or 3-Pole Contactors
• Models That Provide 20, 30 or 40 Amp Capacity
• NEMA 4X Weatherproof Non-metallic Enclosure
• Controls Lighting, Pumps In Irrigation or Aerator Systems

Applications

• Controls Pumps In Irrigation or Aerator Systems
• Use For Day/Night Lighting Controls

Description

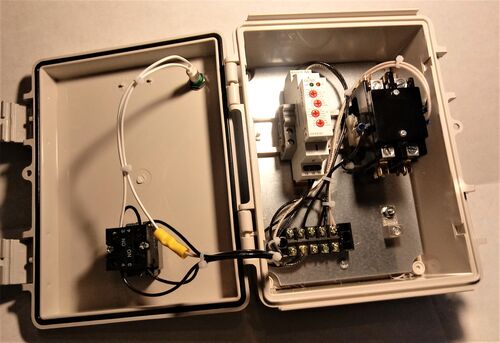

Our ATCP-C-120V Series Analog Timer Panels with Control Contactors feature a field programmable?analog dial timer, NEMA 4X weatherproof enclosure and definite purpose contactor. Models are available with 1, 2 or 3-pole contactors that provide 20, 30 or 40 Amp capacity. Time “On” (T1) and Time “Off” (T2) settings are made by adjusting small dials on the timer module with a small common screwdriver. Both time settings can be adjusted for any time between 1 second and 100 days.

Specifications

Analog?Timer: On/Off Dial Settings from 1 Sec to 100 days
Operating Voltage: 120V AC, 50/60 Hz
Contactor:?20, 30 or 40 Amp, 1, 2 or 3-Pole
Power Connection: Terminal Block
Enclosure: Wall Mounted, (PVC) Plastic
Operating Temperature: -40 to175 ?F (-40 to 80 ?C)
Installation: For Indoor or Protected Outdoor Use
Dimensions: 8 X 6 x 4ﾡﾱ

?

?
