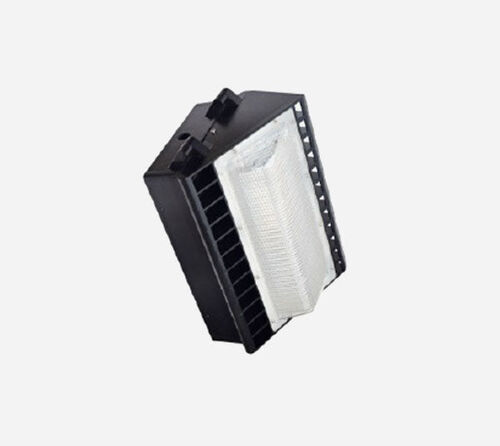

Forward Throw LED Wall Pack (Heat Sinker)

Create magical moments with lamps designed to inspire wonder and creativity!

LED Wall Pack with Photo Cell

Features:

• Power Factor:��0.95
• LED: SMD 3030
• CRI: Ra��70
• Dimming: YES/No
• Motion sensor: Y/N
• Daylight sensor: Y/N
• Material: Aluminum alloy + PC optics lens
• Standard color: dark bronze/Black
• Working Temperature:-40�H ~122�H
• Lifespan:>54000 hours (@Tc=176�H)
• Total Harmonic Distortion: 15%
• -AC180-480V ones are available

Models and Features:

Parking lots, plaza, shopping mall, roadway, garden, site & area lighting, and general lighting applications.

• Model: YR-WL266-W60
• Wattage: 60 watt
• CCT: 5000K
• Lumen: 7,500 lm
• Packaging:?16.9*12.2*11 IN
• GW (lb): 13.2 LBS
• Warranty:? 5 years

• Model: YR-WL266-W80
• Wattage: 80 watt
• CCT: 5000K
• Lumen:?10,000?lm
• Packaging:?16.9*12.2*11 IN
• GW (lb):?13.2 LBS
• Warranty:? 5 years

• Model:?YR-WL266-W100
• Wattage:?100 watt
• CCT: 5000K
• Lumen:?13,000?lm
• Packaging:?16.9*12.2*11 IN
• GW (lb):?13.2 LBS
• Warranty:? 5 years

• Model:?YR-WL266-W150
• Wattage:?150 watt
• CCT: 5000K
• Lumen:?19,000?lm
• Packaging:?16.9*12.2*11 IN
• GW (lb):?14.2 LBS
• Warranty:? 5 years

Our Wall Pack:

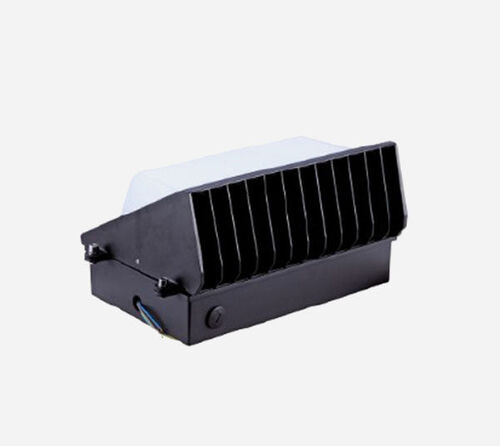

Structure Heat Sinker

1. Funnel heat dissipation?structure makes the wall pack?with better function for heat-conducting?and heat?dissipation;
2. Hollow heat?sinker for allowing air?convection;
3. Professional?design of the shell for LED ones

Other?Wall Pack:

Insert Heat Sinker

1. Use a heat sinker inside the?traditional wall pack shell for?heat dissipation.
2. Heat will?not easily get out from the?shell itself
